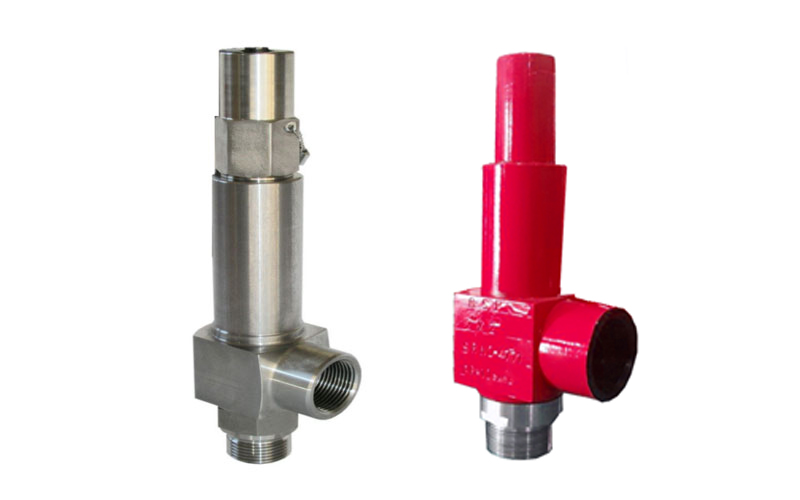

Pressure Relief Valves
‘CBRO’ Conventional Safety Relief Valve model – CSRV 81 is used in many industries for protection against high pressure. This valve is used in the gas or liquid industries to control the pressure for high safety standards. Conventional Safety Relief Valve is used for the safety of various pressure devices like a tank, piping, boiler etc. Mainly the Conventional Safety Relief Valve is used to save property and life.
- Design Standard API 520
- Performance Standard API 526
- Seat Tightness Test API 527
- End Connection Screwed To ASME B 1.20.1, Socket Weld To ASME B 16.11, Butt Weld To ASME B16.25, Flanged To ASME B 16.5
- Spring Loaded Safety Relief Valve
- Full Lift Pop Action Design
- Closed Bonnet With Pack Lever
- Satellite Nozzle & Disc Seating Area
- Soft Seat With P.T.F.E., Peek & Viton
- Size 1/4" Thru 2”
- Rating 150# & 300# / 600# & 2500#
- End Connection 150# & 300# / 600# & 2500#
- Blow Down Pressure 10% Less Then Of The Set Pr.
- Hydrostatic Test Pressure 10% Less Then Of The Set Pr.
- Overpressure 10% Of 10% Of The Set Pressure
- Orifice Designation D Thru G
- Material WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M,CF8C, CN7M, CD4MCu, Hast alloy, Inconel, Duplex, Stainless Steel
